Effect of Nanogap on Dynamics of Lipid Bilayer


Yoshiaki Kashimura and Kazuaki Furukawa
Materials Science Laboratory

 Cell membranes play an important role in the activity of bio-molecules, for example, membrane proteins. A lipid bilayer, which is a basic component of a cell membrane, can be fabricated artificially on a hydrophilic surface by spontaneous growing characteristic (self-spreading). Such membranes remain the fluidity based on lateral diffusion. Using these characteristics, in this study, we investigated the dynamics of a lipid bilayer on a nano-patterned surface and the molecular transport using the lipid bilayer as a molecule carrier [1].
 L-α-Phosphatidylcholine (extracted from egg yolk) containing 5 mol% of dye-conjugated lipid was prepared. Dyes used were Texas Red, fluorescein and NBD with different molecular size. Nanogap (10〜200 nm) using Au was fabricated on an SiO2 surface. Microchannel that had wells at both ends was fabricated on this nanogap structure using a photoresist [Fig. 1(a)]. A small amount of a lipid source was adhered inside the well. The self-spreading of a single lipid bilayer was initiated by immersing the device in a buffer solution. Fluorescence from the lipid bilayer was observed by a confocal laser scanning microscope.
 Figure 1(b) shows a time evolution of a self-spreading lipid bilayer before and after passage through a nanogap. The single lipid bilayer developed along a microchannel and successfully passed through the nanogap without development on photoresist and gold pattern. Figure 2 shows a fluorescence image and corresponding fluorescence intensity profile obtained after a sufficient time interval. This result clearly shows that the fluorescence intensity decreases discontinuously in the vicinity of the nanogap. This behavior strongly depends on the size of the nanogap and dye moiety. The dye molecules experience interference when they pass through the nanogap although the nanogap size is much larger than that of the dye moiety (at most 3 nm).

[1] Y. Kashimura et al., Jpn. J. Appl. Phys. 47 (2008) 3248.

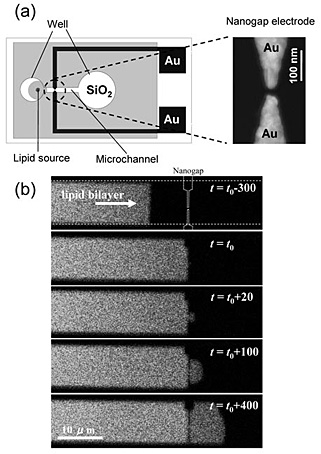

Fig. 1. (left) (a) Device structure used in this study. (b) Time evolution of the self-spreading lipid bilayer. The time at which an advancing lipid bilayer reaches a nanogap is set at t =t0 s.
Fig. 2. Fluorescence image and fluorescence intensity profile after a sufficient time interval.
